Overview

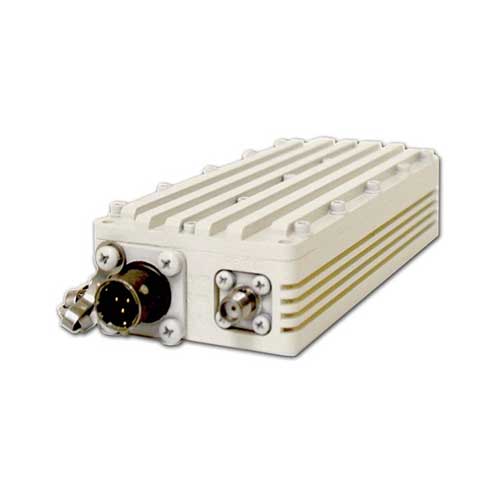

The Advantech Wireless Low Noise Amplifier (LNA) ALNA -STM is a low noise, highly dynamic range amplifier suita ble for use in satellite earth station receiver applications where ultra-low noise and high reliability are critical. Advantech also provides LNA’s in C, X Ku and Ka bands. The S -band LNA is available with Noise Temperature ranging from 50° K to 70° K. With weatherproof packaging, the LNA can meet the demands of the installations in severe environmental conditions.
The 1:1 and 1:2 redundant system configurations can be prov ided. They require special Redundancy Kit. The Advantech Wireless LNA provides an industry leading MTBF of over 200,000 hours.
Options
- Input Isolator
Accesories
- External Transmit Reject Filter
Features
- S -Band frequency from 2.025 to 2.400 GHz (see table on the next page)
- GaAs/HEMT Technology
- Over 200,000 Hours MTBF
- Built-in Regulator 11-24 VDC operation
- Built-in Interstage Transmit Reject Filter
- Built-in Alarm Circuit
- Single or redundant operation
- Power supply via RF connector or Power Connector
- Extreme operating temperature
- Weatherproof housing
- Three year warranty
To order, please select model number from the following list:
- ALNA-S1
- ALNA-S2
- ALNA-S3
- ALNA-S4
Then add suffix:
- 45 for 45°K
- 50 for 50°K
- 60 for 60°K
- 70 for 70°K
Overview
The Advantech Wireless Low Noise Amplifier (LNA) ALNA -STM is a low noise, highly dynamic range amplifier suita ble for use in satellite earth station receiver applications where ultra-low noise and high reliability are critical. Advantech also provides LNA’s in C, X Ku and Ka bands. The S -band LNA is available with Noise Temperature ranging from 50° K to 70° K. With weatherproof packaging, the LNA can meet the demands of the installations in severe environmental conditions.
The 1:1 and 1:2 redundant system configurations can be prov ided. They require special Redundancy Kit. The Advantech Wireless LNA provides an industry leading MTBF of over 200,000 hours.
Options
- Input Isolator
Accesories
- External Transmit Reject Filter
Features
- S -Band frequency from 2.025 to 2.400 GHz (see table on the next page)
- GaAs/HEMT Technology
- Over 200,000 Hours MTBF
- Built-in Regulator 11-24 VDC operation
- Built-in Interstage Transmit Reject Filter
- Built-in Alarm Circuit
- Single or redundant operation
- Power supply via RF connector or Power Connector
- Extreme operating temperature
- Weatherproof housing
- Three year warranty
To order, please select model number from the following list:
- ALNA-S1
- ALNA-S2
- ALNA-S3
- ALNA-S4
Then add suffix:
- 45 for 45°K
- 50 for 50°K
- 60 for 60°K
- 70 for 70°K
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Реестр СИ не требуется
- Реестр СИ не требуется
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Производитель | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
ALNA-S1
|
Диапазон частот 2025-2120 МГц
|
По запросу | ||
|
ALNA-S2
|
Диапазон частот 2100-2250 МГц
|
По запросу | ||
|
ALNA-S3
|
Диапазон частот 2200-2400 МГц
|
По запросу | ||
|
ALNA-S4
|
Диапазон частот 2200-2300 МГц
|
По запросу |
