Микроэлектроника – контрольно-измерительные приборы и РЧ-компоненты: PCR-MA

Обзор

Основные возможности и технические характеристики

Outline

The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a factory option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.

Features

Compact design
Small enough to fit on your work desk !
Only 214W X 124H X 350D mm !
Weights only 6 kg and easy to carry !
(PCR500MA)
Selectable output modes
In addition to "AC mode" and "DC mode", an AC+DC external analog interface board option (EX08-PCR-MA) allows for output control via "EXT-AC mode" and "EXT-DC mode" through external analog signals.
Memory function
The PCR-MA can store up to three sets of output voltage, frequency, and limit value setting via front panel. Additionally, when using communication commands, the internal memory can store up to 11 settings.
Versatile measurement capability
THE PCR-MA is capable of measuring the voltage, current and power of AC and DC output. It can also display the true RMS and average (DC) values of the output voltage as well as the true RMS, peak, and average (DC) values for the output current. When used with digital interface, the PCR-MA can also measure apparent power (VA), reactive power (VAR), power factor (PF), and peak hold current.
Communication interface
LAN and USB digital interface included (GPIB optional)
Easy access with the built-in web server
Use a browser from a PC, smartphone, or tablet to access the web server built into the PCR-MA series for convenient control and monitoring.

Свернуть Развернуть

Основные возможности и технические характеристики

Outline

The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a factory option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.

Features

Compact design
Small enough to fit on your work desk !
Only 214W X 124H X 350D mm !
Weights only 6 kg and easy to carry !
(PCR500MA)
Selectable output modes
In addition to "AC mode" and "DC mode", an AC+DC external analog interface board option (EX08-PCR-MA) allows for output control via "EXT-AC mode" and "EXT-DC mode" through external analog signals.
Memory function
The PCR-MA can store up to three sets of output voltage, frequency, and limit value setting via front panel. Additionally, when using communication commands, the internal memory can store up to 11 settings.
Versatile measurement capability
THE PCR-MA is capable of measuring the voltage, current and power of AC and DC output. It can also display the true RMS and average (DC) values of the output voltage as well as the true RMS, peak, and average (DC) values for the output current. When used with digital interface, the PCR-MA can also measure apparent power (VA), reactive power (VAR), power factor (PF), and peak hold current.
Communication interface
LAN and USB digital interface included (GPIB optional)
Easy access with the built-in web server
Use a browser from a PC, smartphone, or tablet to access the web server built into the PCR-MA series for convenient control and monitoring.

Свернуть Развернуть

Комплектация

Узнайте по тел.: +7 (495) 105 96 88
Напишите нам письмо: info@micro-electronics.ru

Свернуть Развернуть

Сведения о реестре СИ

Номер в госреестре

Не в реестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

PCR-MA - How to control PCR-MA by using LAN
PCR-MA Quick Tip: Universal Input
PCR-MA How to control by using VBA
Glossary of SPEC SHEET Vol.4

Характеристики

Загрузить технические характеристики

Model	Specification

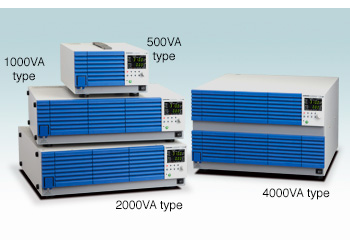

PCR500MA	Single phase 500VA, AC 0V to 155V / 0V to 310V(2 range), 40Hz to 500Hz, DC±-0V to ±219V / ±0V to ±438V, PWM type
PCR1000MA	Single phase 1000VA, AC 0V to 155V / 0V to 310V(2 range), 40Hz to 500Hz, DC±0V to ±219V / ±0V to ±438V, PWM type
PCR2000MA	Single phase 2000VA, AC 0V to 155V / 0V to 310V(2 range), 40Hz to 500Hz, DC±0V to ±219V / ±0V to ±438V, PWM type
PCR4000MA	Single phase 4000VA, AC 0V to 155V / 0V to 310V(2 range), 40Hz to 500Hz, DC±0V to ±219V / ±0V to ±438V, PWM type

Модели и опции

	Товар

	Модели и Опции	Описание	Цена	Заказать

Модели

PCR500MA	Одна фаза 500 ВА, переменный ток от 0 В до 155 В / от 0 В до 310 В (2 диапазона) (от 40 до 500 Гц), постоянное напряжение от ±-0 В до ±219 В / от ±0 В до ±438 В, тип PWM	По запросу	- шт +
PCR1000MA	Одна фаза 1000 ВА, переменный ток от 0 В до 155 В / от 0 В до 310 В (2 диапазона) (от 40 до 500 Гц), постоянное напряжение от ±-0 В до ±219 В / от ±0 В до ±438 В, тип PWM	По запросу	- шт +
PCR2000MA	Одна фаза 2000 ВА, переменный ток от 0 В до 155 В / от 0 В до 310 В (2 диапазона) (от 40 до 500 Гц), постоянное напряжение от ±-0 В до ±219 В / от ±0 В до ±438 В, тип PWM	По запросу	- шт +
PCR4000MA	Одна фаза 4000 ВА, переменный ток от 0 В до 155 В / от 0 В до 310 В (2 диапазона) (от 40 до 500 Гц), постоянное напряжение от ±-0 В до ±219 В / от ±0 В до ±438 В, тип PWM	По запросу	- шт +

Опции

	IB22	Интерфейсная плата GPIB	По запросу	- шт +
	EX08-PCR-MA	Плата аналогового интерфейса GPIB	По запросу	- шт +

Аксессуары

KRB3-TOS	Кронштейн (дюймовые размеры) для TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC	По запросу	- шт +
KRB150-TOS	Кронштейн (метрические размеры) для TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC	По запросу	- шт +
KRB6	Кронштейн (дюймовые размеры) для PCR1000LE, PCR4000M(MA), PCR6000WE2(R)	По запросу	- шт +
KRB300	Кронштейн (метрические размеры) для PCR1000LE, PCR4000M(MA), PCR6000WE2(R)	По запросу	- шт +
KRA3	Адаптер для стойки (дюймовый размер) *Применимо: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(МА), PLZ-205/405 Вт, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800	По запросу	- шт +
KRA150	Адаптер для стойки (метрический размер) *Применимо: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(МА), PLZ-205/405 Вт, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800	По запросу	- шт +
KBP3-2	Пустая панель для KRA3 или 150, ширина:1/2	По запросу	- шт +
