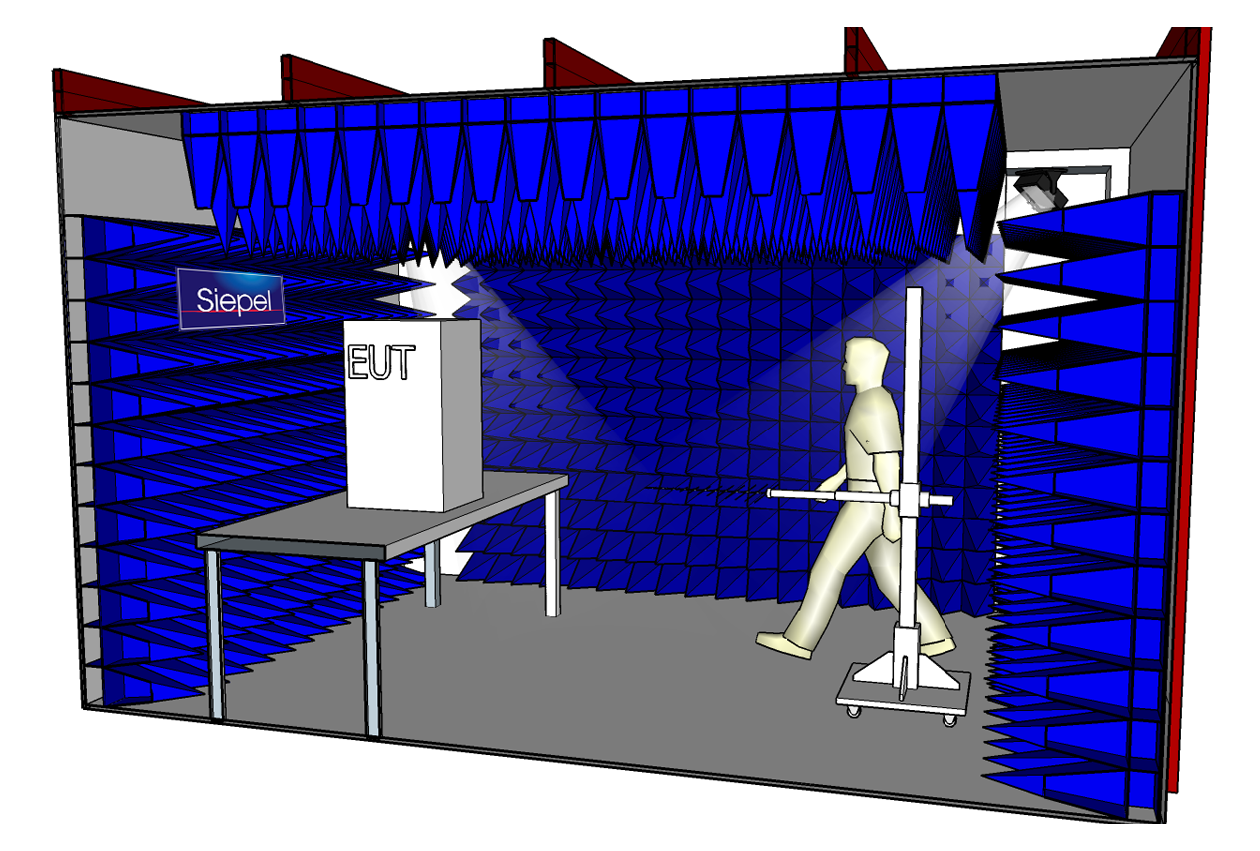

The Ares 1P is designed to perform emission and immunity tests on military and aeronautic devices. The design of the structure is optimised for maximum performances, in minimum space. The chamber and its absorbers are manufactured by SIEPEL.

OUR STRENGTHS
⊕ High-quality components & parts
⊕ Guarantee of 20 years for the RF performances of our absorbers
⊕ Guaranteed performances
⊕ Control of performances before shipment
⊕ Measurement departement accredited ISO/IEC 17025:2005 (accreditation n° 1-6220)
⊕ Fast delivery: permanent stock available off the shelves
⊕ Setting-up of the chambers by our dedicated installation team

	MODULAR SHIELDING Self-standing structure up to 18 (40) GHz Steele stiffeners		OPTIMISED ABSORBER LINING Microwave pyramidal absorbers (optimised lining walls and ceiling)
	DOOR Manual single leaf swing door Clearance 0.9 x 2.1 m		TEST TABLE Dimensions: 2.5 x 1 x 0.9 m with metallic ground plane and connection stripes
	WALL PANELS Penetration panel including coaxial feedthroughs and waveguides		PROJECT REALISATION Project management Technical design & study On-site installation
	VENTILATION Honeycomb air vents 300 x 300 mm up to 18 (40) GHz		PERFORMANCE VERIFICATION Shielding effectiveness at 900 MHz at critical locations
	POWER DISTRIBUTION Power filter single phase 32 A - 50/60 Hz Power filter three-phase 32 A - 50/60 Hz Electrical package: power distribution, lighting

AVAILABLE OPTIONS

› Shielded control and amplifier rooms
› Plastic paint for pyramidal absorbers with wide range of colors
› Other types and dimensions of doors
› Electrically-assisted door latching/unlatching
› Antenna positioners
› Floor hatches with connection points
› Additional power filters, data filters and special feedthroughs
› CCTV / Audio monitoring systems
› Fire detection systems
› On request, some measurements can be accredited ISO 17025 (accreditation number 1-6220).
› Automotive / RadioCom standards compliance
› Many other options on demand
